Description:

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Features:

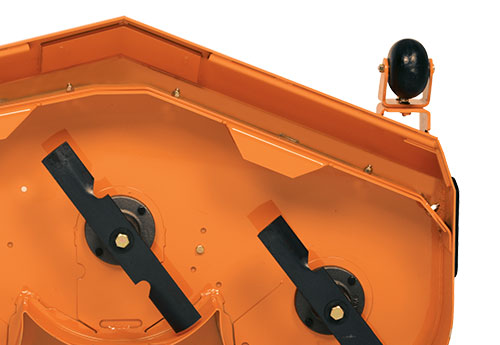

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.

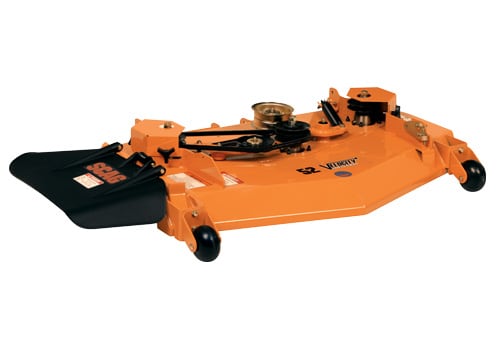

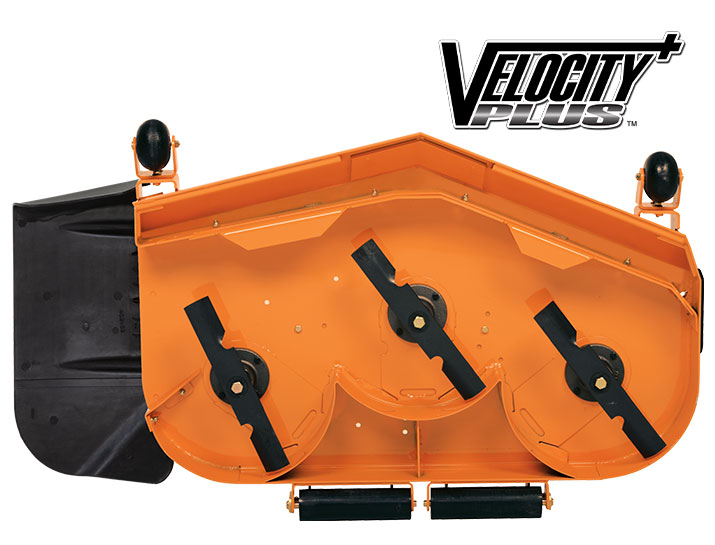

The Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.

Strength — Scag’s tough cutter-blade spindles and Tri-Plate construction ensure solid performance and long life. A replaceable trim-side wear pad protects deck from damage.

Productivity — An extra-large discharge opening, paired with the Turbo Baffle, enhances discharge for even clipping dispersal.

Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.

Engine:

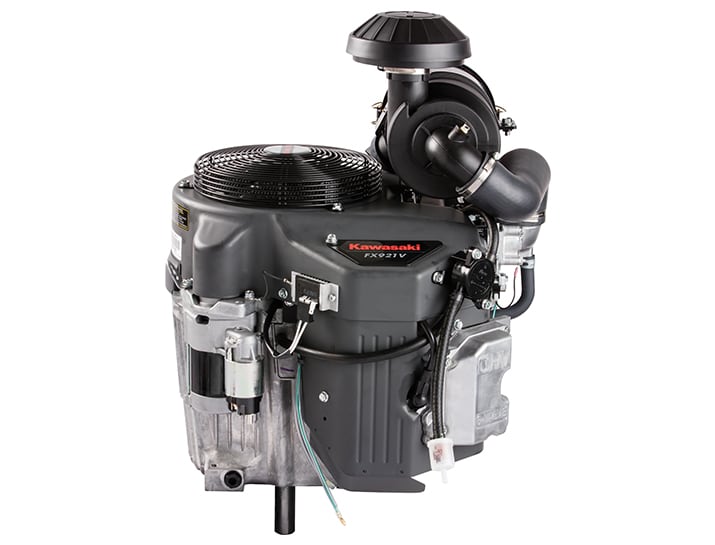

Kawasaki® FX Series are compact, 90-degree, V-Twin engines which feature hemispherical combustion chambers and overhead V-valve technology that helps ensure low emissions, high power and smooth operation.

Other features include:

• 90-degree V-Twin design with overhead V-valve.
• High-performance lubrication system.
• Electronic-spark ignition.
• Automatic compression release.
• Twin-barrel, internally vented carburetor with fuel shut-off solenoid.
• High-efficiency oil cooler (FX801 and FX850 only).
• Rotating grass screen with metal guard.
• Heavy-duty, dual-stage, canister air filter.
• Solenoid-shift electric starter.
• Cast-iron cylinder liners.
• Spin-on oil filter.

Specifications:

Product Dimensions

• Length: 69.5″
• Tracking Width: 48″
• Width (Chute Down): 65.25″
• Width (Chute in Transport Position): 53.75″
• Height: 47.25″
• Weight: 1,000-1,022 lb

General

• Total Fuel Capacity: 8 gallons
• Drive Tires: 24″ x 9.5″-12″
• Caster Tires: 13″ x 5″-6″
• Seat: Extra-large comfort cushion

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14 ci
• Forward Ground Speed: 10.5 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck

• Cutting Width: 52″
• Type: Velocity Plus™
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck with 3 steel plates totaling nearly 1/2″ of steel; reinforcement plates at cutter deck spindles

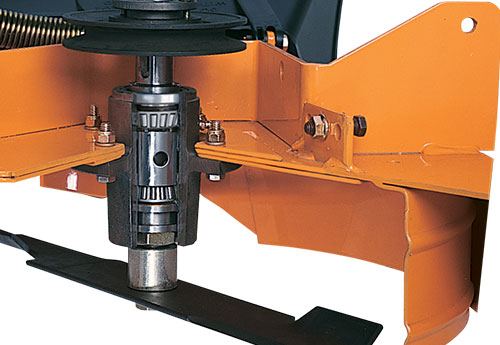

• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT2.5 (150 ft lb) with adjustable air-gap for extended life
