Description:

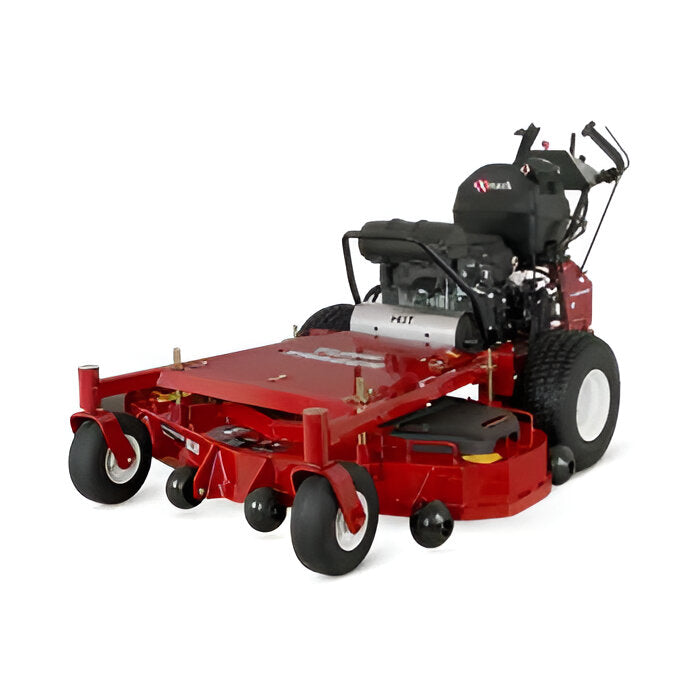

By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class.

Features:

• Patented Enhanced Control System (ECS)- Recent university tests showed landscape professionals prefer our control system to all others on the market.
• Superior Air Filtration- This series comes standard with heavy-duty canister air filtration systems for longer engine life, more efficient performance and simple maintenance.
• Superior Cut Quality- UltraCut™ Series 4 deck
• Floating Deck- Full-floating UltraCut™ deck. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Clutch Performance- A large-capacity, electromagnetic PTO clutch provides excellent durability for extra-long life.

Specification:

• Starter: Electric
• Steering Control: Hydro drive with Enhanced Control System (ECS); forward/reverse; left/right or zero-turn
• Front Caster Tires: 11 x 4.0-5; smooth tread; semi-pneumatic
• Drive Tires: 18 x 8.5-8; 4-ply Turf Master
• Safety Package: Operator Presence Controls (OPC); operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
• Parking Brake: Lever-actuated mechanical compression
• Electrical: 12-volt battery with 20-amp alternator
• Standard Features: Enhanced engine hour meter
• Engine Brand: Kawasaki
• Engine Model: FX691V
• Engine Displacement: 726 cc
• Engine Series: V-Twin
• Engine Spec: DS00-S
• Engine Speed: 3600 rpm
• Transmission Brand: Hydro-Gear
• Transmission: Hydrostatic
• Transmission Speeds: Infinitely variable
• Fuel System: Carbureted
• Fuel Type: Gas
• Speed: Infinitely variable from 0–6.75 mph (10.9 km/h) forward; 0–2.25 mph (3.6 km/h) reverse
• Drive: Hydro-Drive
• Fuel Capacity: 5 gallons (18.9 L) fuel tank
• Air Filter: Heavy-duty canister air filtration system
• Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts
• PTO Engagement: Electromagnetic 200 ft-lbs clutch
• Fuel Indicator: None
• Drive Wheel Release: Allows unit movement without engine running
• Deck Lift: Manual lift with hairpin from hole to hole for position adjustment
• Carb Compliant: No
• Deck Style: Floating Deck
• Deck Style Description: Full-floating UltraCut Series 3; side discharge standard with molded discharge chute and option to bag or mulch
• Width / Cutting Deck: 60"
• Deck Construction: 10-gauge top, formed and continuously seam welded; 7-gauge side skirt and welded spindle mounting locations for improved strength
• Cutting Heights: 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments
• Blade Spindles: No maintenance; sealed and non-greasable; 7.75"-diameter cutter housing with 25mm (0.98") spindle shaft and splined blade driver
• Blade Tip Speed: Approximately 18,500 fpm
• Blades: 3 blades at 20.5" length
• Width: 73.0 in (185.4 cm)
• Height: 45.0 in (114.3 cm)
• Length: 104.8 in (266.2 cm)
• Curb Weight: 840 lbs
