Description:

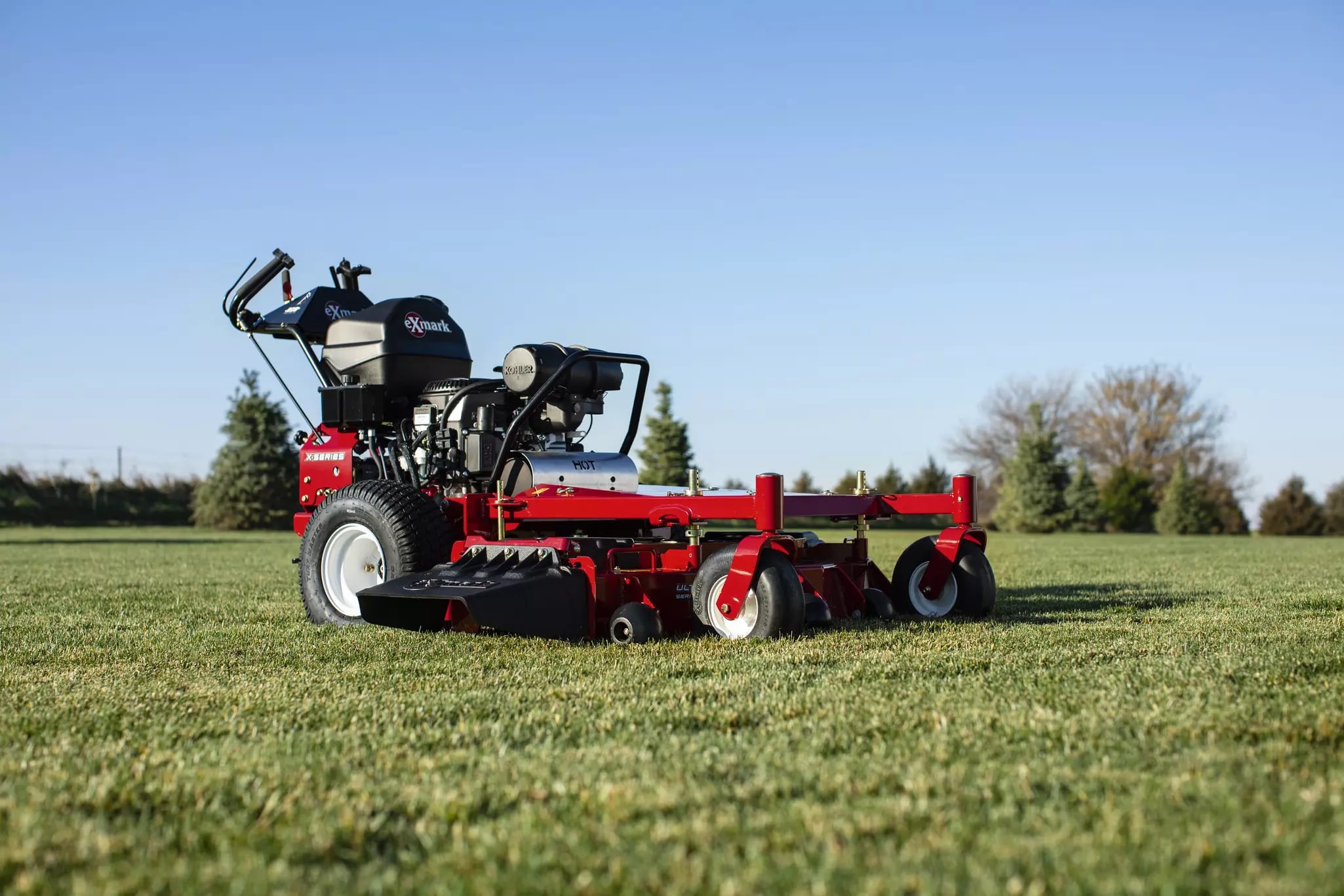

Exmark Turf Tracer wide-area walk-behind mowers are an investment in the future. Choose between deck widths of 36, 48, 52, and 60-inch in your next self-propelled mower, knowing it is made with industrial-leading parts and accessories. The Turf Tracer is powered by either a Kohler or Kawasaki engine to keep you running all day, season after season. Reach ground speeds up to 6.75 mph and produce precision cutting with the UltraCut Series 3 and Series 4 deck designs and our patented Enhanced Control System (ECS) for operator comfort.

Want to view the rest of our lineup of self-propelled mowers? Check out our full lineup of walk-behind mowers.

Specification

GENERAL INFORMATION

• UPC: 193308000114
• Power Source: Gas
• Fuel Type: Gas Carbureted
• Fuel Capacity: 5-gallon single fuel tank with single fill location
• Fuel Indicator: None
• Carb Compliant: No

CUTTING DECK

• Width: 52"
• Deck Style: Floating Deck
• Deck Style Description: Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.
• Deck Construction: 10-gauge top, continuously seam welded, 7-gauge side skirt, and 7-gauge welded spindle mounting locations for improved strength.
• Cutting Heights: 1.5" to 4.5" in 0.5" increments
• Blades: 3 blades (16.25" length each)
• Blade Tip Speed: ~18,500 FPM
• Blade Spindles: No maintenance, sealed, non-greasable spindles; 7.75"-diameter cutter housing with 25mm (0.98") diameter spindle shaft and splined blade driver.

DRIVE SYSTEM

• Drive: Hydro-Drive
• Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" tapered shafts.
• Transmission Speeds: Infinitely Variable
• Transmission Brand: Hydro-Gear
• Transmission Type: Hydrostatic
• Speed: 0–6.2 MPH forward, 0–2.2 MPH reverse
• Drive Wheel Release: Allows unit movement without engine running

ENGINE

• Brand: Kawasaki®
• Model: FS600V
• Displacement: 603cc
• Series: V-Twin
• Spec: AS26-R
• Speed: 3,600 RPM
• Air Filter: Standard Engine Manufacturer's air filter
• Starter: Electric

PTO & CLUTCH

• PTO Engagement: Electromagnetic 105-ft-lb clutch

STEERING & CONTROLS

• Steering Control: Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right, or zero-turn.
• Deck Lift: Manual lift with hairpin from hole to hole for position adjustment.

FRAME & BUILD

• Blade Spindles: No maintenance, sealed, non-greasable spindles; 7.75"-diameter cutter housing with 25mm (0.98") diameter spindle shaft and splined blade driver.

WHEELS & TIRES

• Front Caster Tires: 9 x 3.5-4, smooth-tread, semi-pneumatic
• Drive Tires: 16 x 7.5-8, 4-ply Turf Master®

SAFETY & COMPLIANCE

• Safety Package: Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave the operator’s position without stopping the engine.
• Parking Brake: Lever-actuated mechanical compression

OPERATOR COMFORT

• Standard Features: Engine hour meter

DIMENSIONS & WEIGHT

• Width: 64.3"
• Height: 42"
• Length: 75.9"
• Curb Weight: 690 lbs
