Description:

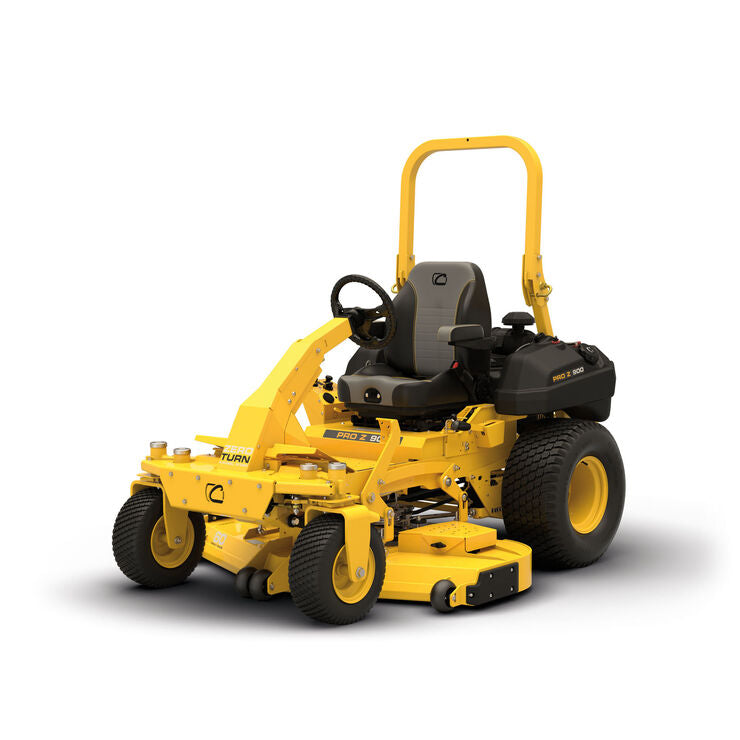

The Cub Cadet® PRO Z 960 S EFI 60-in. 38.5 HP* Commercial Zero-Turn Lawn Mower With Synchro-Steer™ Technology And EFI Engine features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Category exclusive steering wheel control technology is designed to allow you to conquer slopes up to 20 degrees. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime.

Features:

• 38.5 HP Kawasaki FX1000v (999cc) EFI engine and 16cc Hydro Gear 5400 transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Specifications:

Engine

• Engine Brand: Kawasaki®
• Engine Model: FX Series EFI
• Engine Model Number: 1000V
• Engine Displacement: 999cc
• Engine Output: 38.5 HP
• Cylinders: Twin
• Fuel Delivery: Electronic Fuel Injection (EFI)
• Fuel Tank Capacity: Dual 7.45 gal. US (28.2 L)
• Engine Start: Ignition Key
• Lubrication: Fully Pressurized
• Charging System: 15 Amp Regulated
• Choke: Auto Choke / EFI
• Air Filter: High-Density
• Oil Filter: Yes
• Engine Oil Capacity: 2.0 qt. US (1.89 L)

Drive System:

• Transmission: 16cc Hydro-Gear 5400
• Forward Speed: 14 mph / 22.5 km/h
• Reverse Speed: 6 mph / 9.5 km/h

Cutting Deck:

• Deck Cutting Width: 60 in
• Deck Material: Fabricated 7ga. (.187”) Steel Shell
• Deck Construction: 7ga. Top Plate, 7ga. Bottom Reinforcement, ¼” Rolled Leading Edge
• Deck Engagement (PTO): Electronic Fingertip Engagement PTO
• Spindle Construction: 8" Sealed Cast Aluminum Housing (Maintenance-Free)
• Blade Type: 3 High-Lift Marbain® Blades
• Blade Speed: Approx. 18,500 fpm
• Cutting Height Range: 1” to 5” (1/4” Increments)
• Deck Positions: Foot Pedal with Spring Assist (16 Positions)
• Anti-Scalping: 2 Front Deck Gauge Wheels

Chassis & Frame:

• Frame: Fully Welded, Full-Length 3/8 x 5" Laser Cut Steel with Integrated Tie-Down Slots
• Front Axle: 2" x 3" Solid Axle Tube with ISO Dampening Suspension
• ROPS (Roll-Over Protection System): 2" x 2" Spring-Latch Tool-Less Foldable (3 Positions)
• Rear Engine Guard: 5/16" Thick Steel with Pre-Drilled Mounting Points for Attachments & Integrated Rear Hitch
• Front Yokes: 1/2" Thick Steel

Controls & Comfort:

• Cruise Control: N/A
• Brakes: Hand-Operated Lever with Integrated Hydro Pump Release Lever
• Steering Control: High-Performance Steering Wheel with Electronic Power Steering & Foot-Pedal Control
• Seat Type: High-Back Air-Ride Suspension with EVC Cushion, ISO-Mounted Base (Lateral Suspension)
• Seat Features: Cushion with Seat Belt, Padded Armrests, Angle Back Adjust & Lumbar Support

Wheels & Tires:

• Rear Tires: 26"x12"-12"
• Front Tires: 16"x6.5"-8" Kenda K505
• Tire Tread: Turf Tread

Dimensions & Weight:

• Weight (Approx.): 1,580 lbs.

Additional Specifications:

• Hour Meter: Crew Boss
• Discharge Chute: High-Density, Impact-Resistant Rubber
• Cup Holder: Integrated into Side Pod

Model & Warranty:

• Model Number: 53RLHUUV050
• Residential Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
• Commercial Warranty: 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour
