Description:

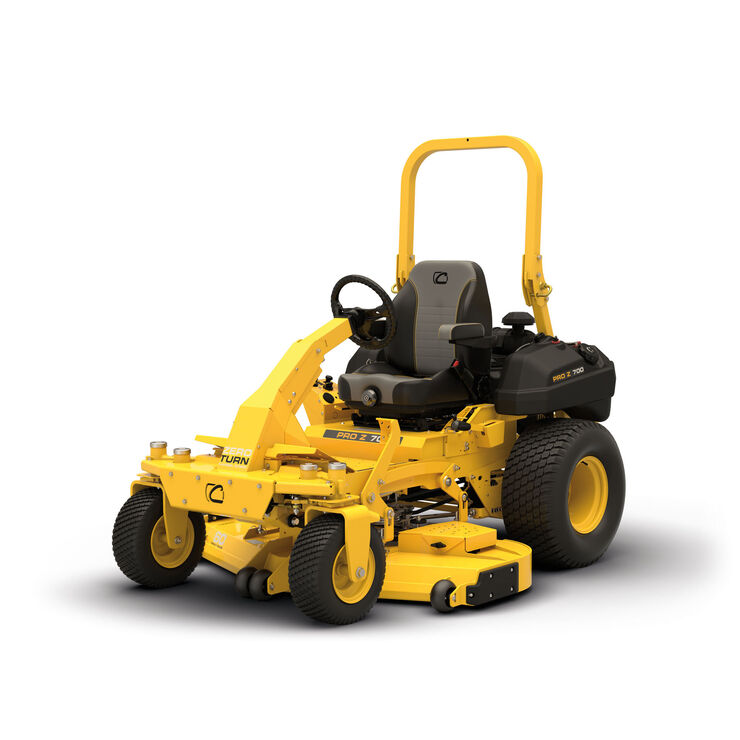

The Cub Cadet® PRO Z 760 S 60-in. 31 HP* Commercial Zero-Turn Lawn Mower With Synchro-Steer™ Technology features a triple 7-gauge fabricated steel cutting deck with top, bottom and side reinforcements. Category exclusive steering wheel control technology is designed to allow you to conquer slopes up to 20 degrees. Equipped with maintenance-free spindles and pulleys to deliver peak performance with limited downtime.

Features:

• 31 HP Kawasaki FX921v (999cc) engine and 12cc Hydro-Gear 4400 transmission
• 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
• 3-Year / no hour limit warranty and/or 5-Year 1,200 hour warranty

Specification:

Engine

• Engine Brand: Kawasaki®
• Engine Model: FX Series 921V
• Displacement: 999cc
• Power Output: 31 HP
• Fuel Tank Capacity: Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
• Lubrication: Full — Spin-on oil filter
• Choke: Separate choke

Drive System

• Transmission: 12cc Hydro-Gear 4400
• Forward Speed: 12 MPH / 19 km/h
• Reverse Speed: 6 MPH / 9.5 km/h

Cutting Deck

• Deck Width: 60 in.
• Deck Material: Fabricated 7-gauge (.187") steel shell
• Deck Construction: 7-gauge top plate, 7-gauge bottom reinforcement, ¼" rolled leading edge
• Deck Engagement (PTO): Electronic fingertip engagement
• Blades: Triple high-lift Marbain® blades (standard)
• Spindle Construction: 8" sealed cast aluminum housing (maintenance-free)
• Cutting Height Range: 1" to 5" in ¼" increments
• Deck Lift: Foot pedal with spring assist
• Deck Height Positions: 16
• Anti-Scalping Wheels: 2 front gauge wheels

Chassis

• Frame: Fully welded, full-length 3/8" x 5" laser-cut steel with integrated tie-down slots
• Front Axle: 2" x 3" solid axle tube with ISO dampening suspension
• ROPS: 2" x 2" spring-latch, 3-position, tool-less foldable
• Rear Bumper: 5/16" thick steel engine guard with integrated rear hitch and pre-drilled mounting points
• Yokes: 1/2" thick steel front yokes

Controls

• Steering Control: High-performance steering wheel with electronic power steering & foot-pedal control
• Brakes: Hand-operated lever with integrated hydro pump release
• Cruise Control: Not available

Comfort

• Armrests: Padded
• Seat Suspension: High-back dial suspension with EVC cushion and ISO-mounted base (lateral suspension)
• Seat Adjustment: Adjustable angle back and lumbar support

Wheels

• Rear Tires: 24" x 12" – 12"
• Front Tires: 16" x 6.5" – 8" Kenda K505
• Tread: Turf Tread

Dimensions

• Approximate Weight: 1,562 lbs

Additional Features

• Hour Meter: Crew Boss digital
• Discharge Chute: High-density, impact-resistant rubber
• Cup Holder: Integrated into side pod
• Model Number: 53FIHTUV050

Warranty

• Residential Warranty: 3-Year (No Hour Limit) and/or 5-Year / 1,200 Hour
• Commercial Warranty: 3-Year (No Hour Limit) and/or 5-Year / 1,200 Hour
