Description:

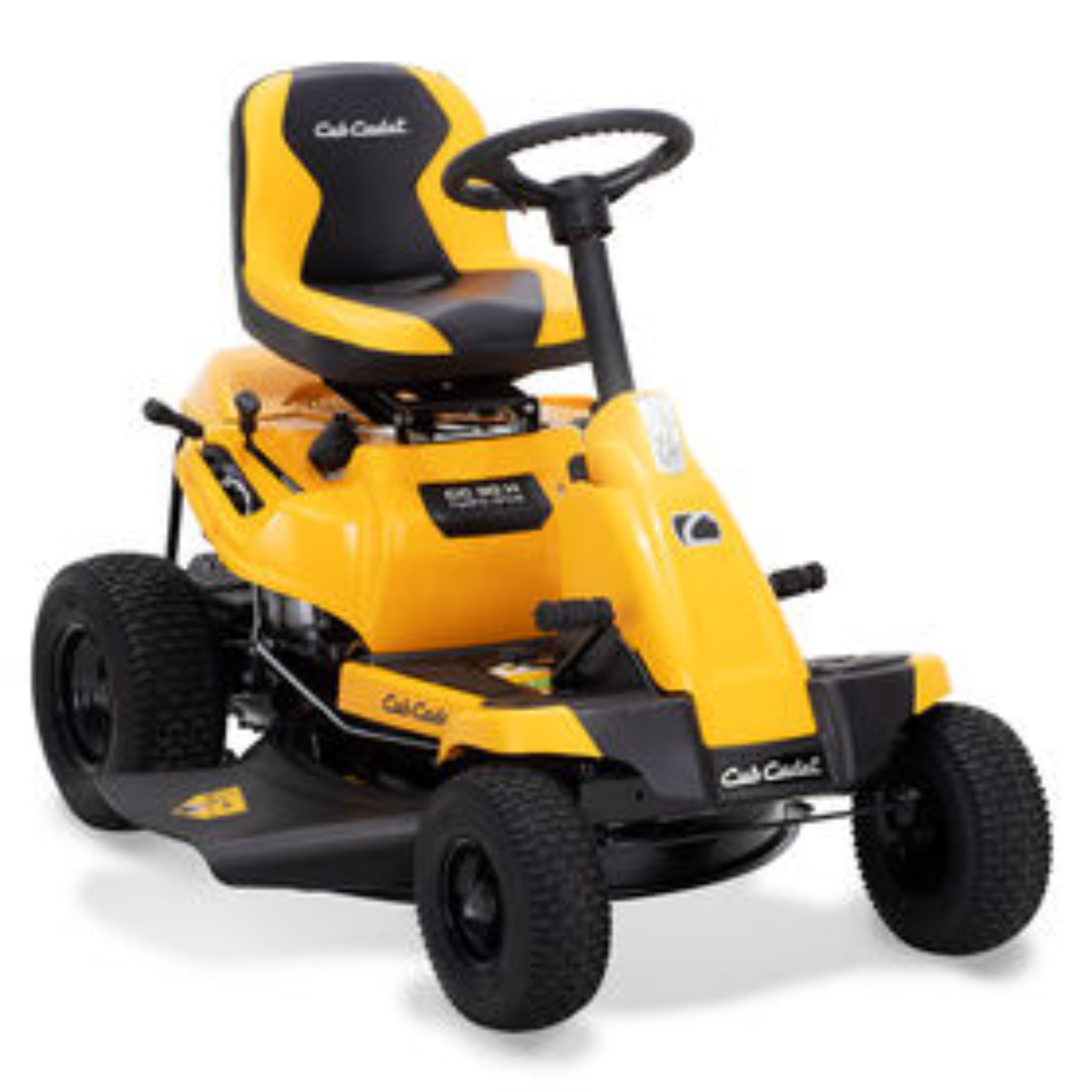

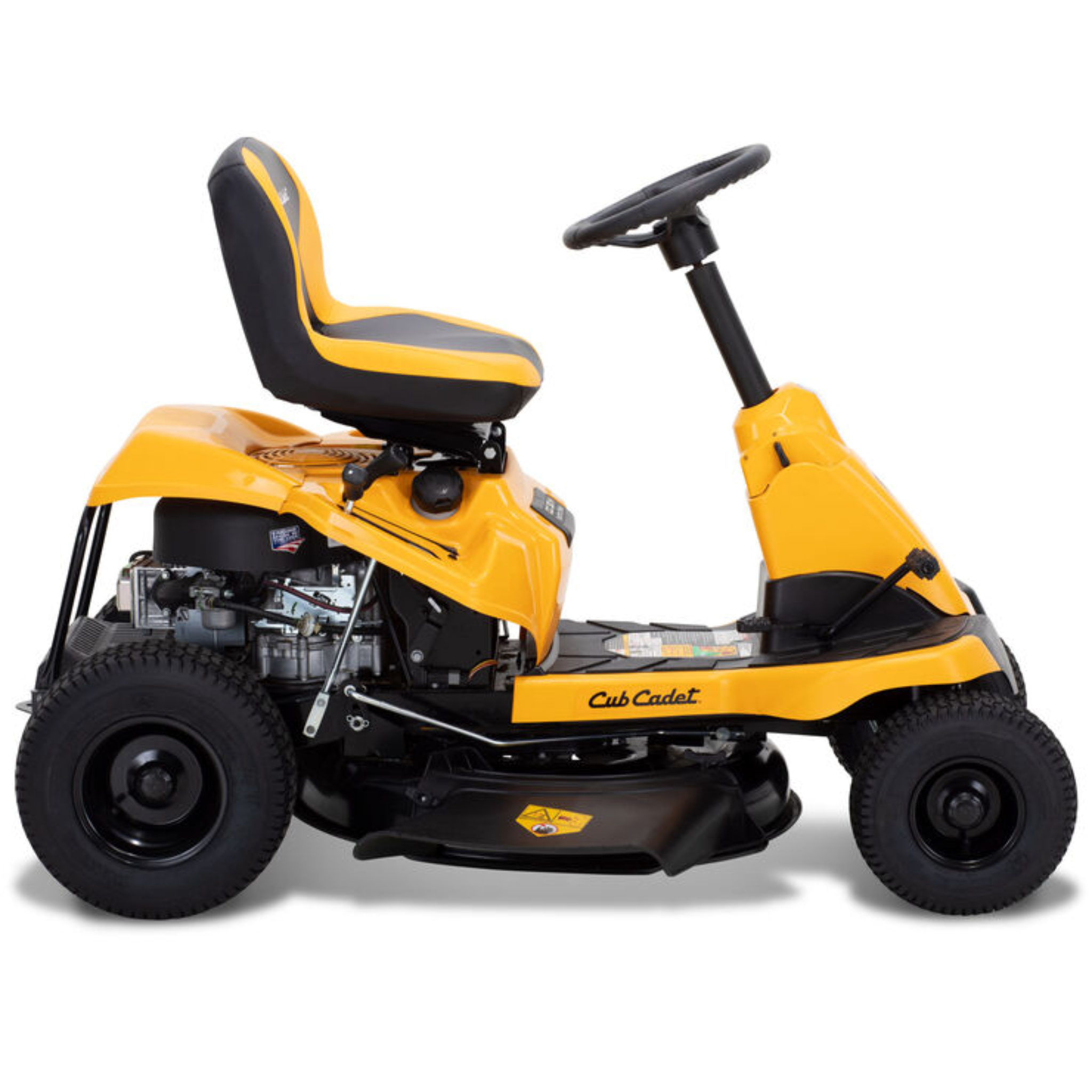

The Cub Cadet® CC30H 30-in. 10.5 HP* Compact Riding Lawn Mower is designed to fit through and be stored in small spaces. LED headlight designed for visibility in low light conditions. A high-back seat engineered to provide elevated back support.

Features:

• A 10.5 HP*/344cc Briggs & Stratton® engine is designed to deliver reliable power to tackle your yard
• LED headlight helps provides visibility for mowing in low light conditions
• Fully pressurized with automotive-style oil pump
• Hydrostatic drive transmission
• Small Riding Mower

Specification:

Engine:

• Brand: Briggs & Stratton®
• Model: Powerbuilt
• Model Number: 21R707-0152
• Displacement: 344cc
• Engine Output: 10.5 HP
• Starter Type: Electric
• Fuel Tank Capacity: 1.3 gal. US (4.92 L)
• Cylinders: Single
• Engine Start: Ignition Key
• Engine Oil Capacity: 1.5 qt. US (1.42 L)
• Lubrication: Fully pressurized
• Charging System: 3.75 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Single element
• Oil Filter: No
• Fuel Delivery: Carburetor
• Battery: 12V AGM (Absorbent Glass Mat), 150 CCA

Drive System:

• Transmission: Hydro-Gear T2HP
• Forward Speed: 4 MPH / 6.4 km/h
• Reverse Speed: 2 MPH / 3.2 km/h
• Rear Axle Diameter: 3/4"
• Drive System: Hydrostatic
• Transmission Control: Foot Pedal
• Transmission Housing: Aluminum
• Rear Differential Lock: No

Cutting Deck:

• Deck Cutting Width: 30 in
• Deck Wash: Yes
• Deck Material: 14-gauge steel
• Deck Engagement (PTO): Manual
• Deck Construction: Stamped
• Blade(s): One
• Deck Lift: Manual
• Cutting Height Range: 1.5" - 4"
• Anti-Scalping: No
• Deck Positions: 5

Chassis:

• Frame: Robotically welded
• Turning Radius: 18"
• Bumper: Steel tube
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: 14-gauge steel

Controls:

• Cruise Control: No
• Brakes: Disc

Comfort:

• Seat Type: 15" high-back
• Armrests: No
• Seat Adjustment: Knob
• Floor Mats: Integrated

Wheels:

• Bearing Type: Poly Bushing
• Rear Tires: 16"x 6.5"-8"
• Front Tires: 13"x 5"-6"
• Tire Tread: Turf Saver

Additional Specifications:

• Series: CC30 Series
• Hour Meter: No
• Mulch Kit: Included
• Headlight(s): LED
• Cup Holder: Yes
• Operator Presence System: Yes

Warranty:

• Residential Warranty: 3-year limited residential
• Frame Warranty: 3-year limited
• Front Axle Warranty: 3-year limited
• Deck Shell Warranty: 3-year limited
• Commercial Warranty: No
