Description:

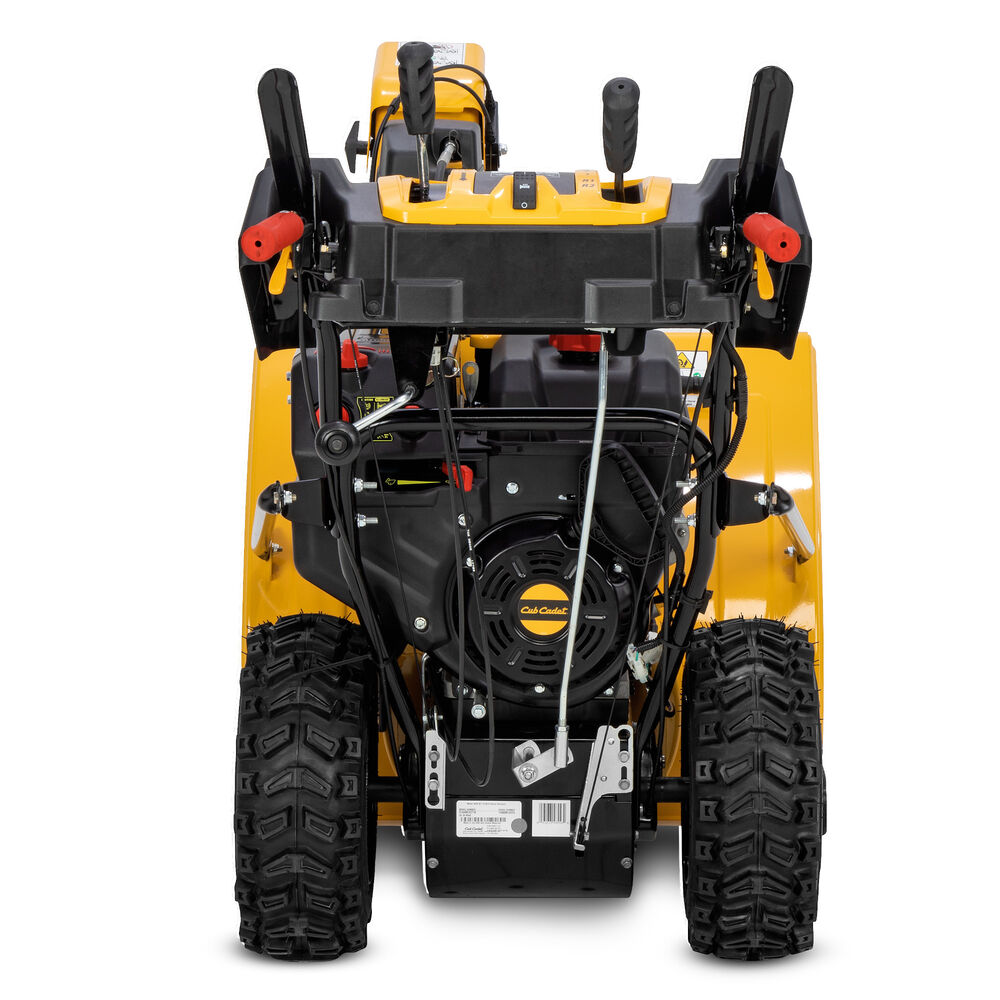

Dominate winter with this 2X 30 in. MAX 357cc Gas Two-Stage Snow Blower. This MAX unit has a 23 in. intake height and 14 in. augers and impeller designed to remove up to 18 in. of snow†. An LED light bar aids visibility in low-light conditions. Includes trigger-controlled power steering with a self-propelled drive engineered for control, maneuverability, and single-hand operation.

Features:

• 30 in. clearing width and 23 in. intake height is designed to throw snow up to 40 ft. away while clearing up to 18 in. of snow†
• 357cc 4-cycle OHV Cub Cadet engine delivers the power to help clear snow on driveways that are 12+ parking spaces in size
• Heated grips help provide warmth and comfort.
• Read MoreEngineered for durability thanks to a heavy-duty cast aluminum auger gearbox, heavy-duty steel auger housing, and steel chute.
• LED lightbar on top of the auger housing and dual LED headlights on the dash help provide visibility in low-light conditions.

Specifications:

Engine

• Brand: Cub Cadet®
• Model Number: 683-WUB
• Displacement: 357 cc
• Start Type: Recoil and Push-Button Electric
• Fuel Capacity: 5 quarts US / 4.7 L
• Fuel Delivery: Carburetor
• Governor Type: Mechanical

Drive System

• Drive Type: Friction Disc
• System: All-Wheel Drive
• Forward Speeds: 6
• Reverse Speeds: 2
• Steering Control: Trigger-Controlled Power Steering

Controls

• Handle Grips: Soft-Touch Heated Grips
• Single-Hand Operation: Standard
• Chute Rotation Control: Remote Overhead Crank
• Chute Pitch Control: Remote Single-Lever
• Chute Rotation: 200°

Power & Performance

• Clearing Width: 30 in
• Intake Height: 23 in
• Number of Stages: Two-Stage
• Auger Diameter: 14 in
• Impeller Diameter: 14 in
• Auger Gearbox: Heavy-duty Cast-Aluminum
• Auger Material: Serrated Steel

Chute & Skid Shoes

• Chute Material: Steel
• Shave Plate: Heavy-Duty Steel
• Skid Shoes: Deluxe Reversible Poly
• Drift Cutters: Not Included

Lighting

• Headlights: Dual LED + LED Light Bar

Tires

• Tire Size: 16" x 6.5"
• Tread Type: Xtrac®

Dimensions

• Auger Diameter: 14 in
• Impeller Diameter: 14 in

Warranty

• Residential Warranty: 3-Year Limited
• Commercial Warranty: 1-Year Limited
• Auger Gearbox Warranty: 5-Year Limited
• Chute Warranty: 3-Year Limited
